orbit.py_linac

Classes

AccErrorNode([name, type_in])	This is an abstract base class for Error nodes hierarchy.
ErrorLongitudinalDisplacementNode([name])	The subclass of AccErrorNode.
ErrorCoordDisplacementNode([name])	The subclass of AccErrorNode.
ErrorBendFieldNode([name])	The subclass of AccErrorNode.
ErrorStraightRotationZNode([name])	The subclass of AccErrorNode.
ErrorStraightRotationXNode([name])	The subclass of AccErrorNode.
ErrorStraightRotationYNode([name])	The subclass of AccErrorNode.
BaseErrorController([name, type_in])	The base class for Error Controllers.
ErrorCntrlLongitudinalDisplacement([name])	Subclass of BaseErrorController.
ErrorCntrlCoordDisplacement([name])	Subclass of BaseErrorController.
ErrorCntrlBendField([name])	Subclass of BaseErrorController.
ErrorCntrlStraightRotationZ([name])	Subclass of BaseErrorController.
ErrorCntrlStraightRotationX([name])	Subclass of BaseErrorController.
ErrorCntrlStraightRotationY([name])	Subclass of BaseErrorController.

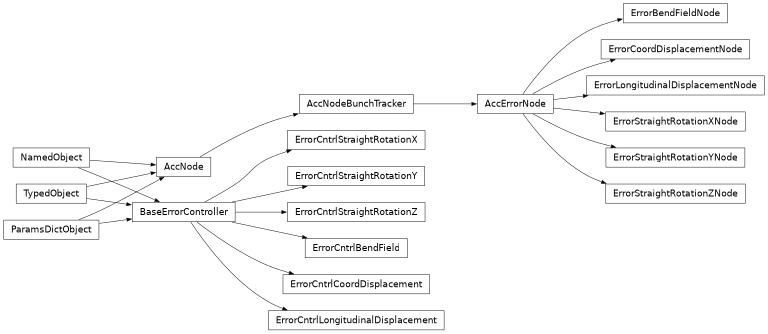

Class Inheritance Diagram

Functions

GetGlobalQuadGradient(accLattice, z)	The service function for the overlapping fields package.
GetGlobalQuadGradientDerivative(accLattice, z)	The service function for the overlapping fields package.
GetGlobalRF_AxisField(accLattice, z)	The service function for the overlapping RF fields package.
getNodeForNameFromWholeLattice(accLattice, name)	Returns the accelerator node or an array of nodes with the same name.
getNodePosDictForWholeLattice(accLattice)	Returns the dict[node] = (posStart,posEnd) for all nodes (not only for the firts level).
getAllNodesInLattice(accLattice)	Returns the array with all nodes on all levels (even sub-child).
getAllMagnetsInLattice(accLattice)	Returns the array with all magnets including magnets on all levels (e.g correctors)

Classes

LinacAccLattice([name])	The subclass of the AccLattice class.
BaseLinacNode([name])	The base abstract class of the linac accelerator elements hierarchy.
LinacNode([name])	The abstract class of the linac accelerator elements hierarchy that can be tilted.
LinacMagnetNode([name])	The abstract class of the linac magnet.
MarkerLinacNode([name])	This is a marker.
Drift([name])	Drift element.
Quad([name])	Quad Combined Function TEAPOT element.
AbstractRF_Gap([name])	This is an abstarct class for all RF Gap classes.
DCorrectorH([name])	The Horizontal Dipole Corrector.
DCorrectorV([name])	The Vertical Dipole Corrector.
ThickKick([name])	Thick kiker linac node.
Bend([name])	Bend Combined Functions TEAPOT element.
Solenoid([name])	Solenoid TEAPOT based element.
LinacApertureNode(shape, a, b[, pos, c, d, name])	The aperture classes removes particles from bunch and places them in the lostbunch if their coordinates are not inside the aperture: The shape variable could be: 1 is circle (a is a radius) 2 is elipse (a and b are a half-axises) 3 is rectangle (a and b are a half-horizontal and vertical sizes) c and d parameters are x and y offsets of the center
CircleLinacApertureNode(radius[, pos, c, d, ...])	The curcular aperture shape = 1
EllipseLinacApertureNode(a, b[, pos, c, d, name])	The ellipse aperture shape = 2
RectangleLinacApertureNode(a, b[, pos, c, ...])	The rectangle aperture shape = 3
LinacPhaseApertureNode([frequency, name])	The phase aperture classes removes particles from bunch and places them in the lostbunch if their phases are not inside the min-max phases.
LinacEnergyApertureNode([name])	The phase aperture classes removes particles from bunch and places them in the lostbunch if their phases are not inside the min-max energy.
RF_Cavity([name])	This is the class to keep refernces to the RF Gaps which are BaseLinacNode subclasses.
Sequence([name])	This is the class to keep refernces to AccNodes that constitute the accelerator sequence.
BaseRF_Gap([name])	The simplest RF gap representation.
AxisFieldRF_Gap(baserf_gap)	The RF gap representation that uses the RF axis field.
RF_AxisFieldsStore()	The dictionary with the axis field Functions with the input file names as keys.
AxisField_and_Quad_RF_Gap(axis_field_rf_gap)	The class represents the part of the RF gap.
OverlappingQuadsNode([name])	The class represent the set of quads with the overlapping fields.
LinacTrMatrixGenNode(trMatricesController[, ...])	Linac Accelerator Nodes for Transport Matrices generation.
LinacTrMatricesController()	LinacTrMatricesController keeps the references to the LinacTrMatrixGenNode instances.
LinacBPM([frequency, name])	The linac BPM representation.

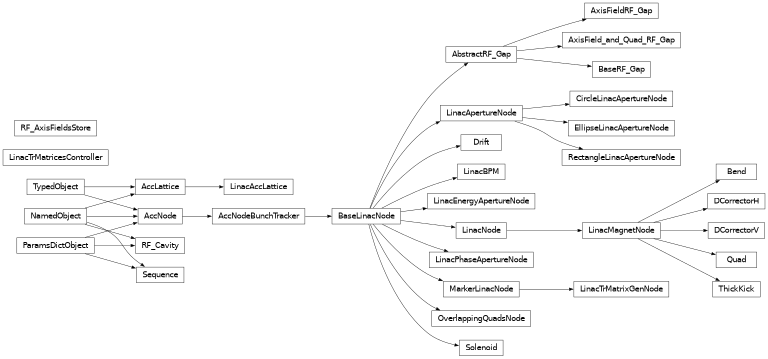

Class Inheritance Diagram

Functions

Add_quad_apertures_to_lattice(accLattice[, ...])	Function will add Aperture nodes at the entrance and exit of quads.
Add_bend_apertures_to_lattice(accLattice[, ...])	Function will add Aperture nodes at the bend nodes of the lattice if they have aperture parameters.
Add_rfgap_apertures_to_lattice(accLattice[, ...])	Function will add Aperture nodes at the entrance and exit of RF gap.
GetLostDistributionArr(aprtNodes, bunch_lost)	Function returns the array with [aptrNode,sum_of_losses] The sum_of_losses is a number of particles or the sum of macro sizes if the particle attribute "macrosize" is defined.
AddScrapersAperturesToLattice(accLattice, ...)	Function will add the rectangular Aperture node (shape=3) at the node with a particular name.
Add_drift_apertures_to_lattice(accLattice, ...)	Function will add Aperture nodes at the drift nodes of the lattice between positions pos_start and pos_end with the minimal distance of 'step' between aperture nodes.
AddMEBTChopperPlatesAperturesToSNS_Lattice(...)	Function will add two Aperture nodes at the entrance and exit of MEBT chopper plates.
Replace_BaseRF_Gap_to_AxisField_Nodes(...[, ...])	Function will replace BaseRF_Gap nodes by AxisFieldRF_Gap.
Replace_BaseRF_Gap_and_Quads_to_Overlapping_Nodes(...)	Function will replace BaseRF_Gap nodes by AxisField_and_Quad_RF_Gap.
Replace_Quads_to_OverlappingQuads_Nodes(...)	Function will replace Quad nodes by OverlappingQuadsNode nodes.

Classes

ErrorForNodesModification([name, type_in])	The base abstract class for set of separate nodes modification with two error nodes: one at the entrance and one at the exit of the lattice node.
CoordinateDisplacementNodesModification([name])	This class applies the coordinate displacement errors to the set of nodes.
BendFieldNodesModification([name])	This class will apply the errors to the fields of the bends using energy shift
LongitudinalDisplacementNodesModification([name])	This class shifts lattice nodes in longitudinal directions.
StraightRotationZ_NodesModification([name])	This class rotate lattice nodes around z-axis directions.
StraightRotationX_NodesModification([name])	This class rotate lattice nodes around x-axis directions.
StraightRotationY_NodesModification([name])	This class rotate lattice nodes around y-axis directions.
QuadFieldsErrorsDeployment([name, type_in])	Class will apply the errors to the fields of the quads

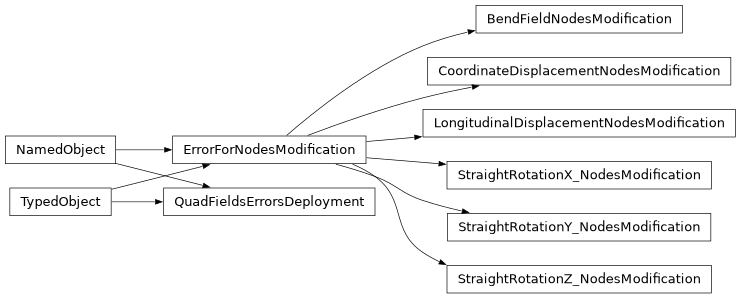

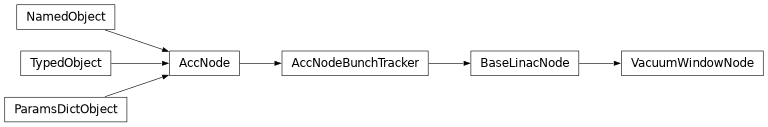

Class Inheritance Diagram

Classes

SNS_LinacLatticeFactory()	The SNS Linac Lattice Factory generates the Linac Accelerator Lattice from the XML file of the specific structure.
JPARC_LinacLatticeFactory()	The JPARC Linac Lattice Factory generates the Linac Accelerator Lattice from the XML file of the specific structure.

Class Inheritance Diagram

Classes

VacuumWindowNode(length, ma[, density_fac, ...])

The vacuum window node class for linac lattice

Class Inheritance Diagram

Classes

TransverseBPM(trajCorrection, bpm_marker_node)	BPM node for transverse position report
TrajectoryCorrection(lattice[, start_node, ...])	Class to perform correction of the trajectory in the linac type lattice or in the part of it.

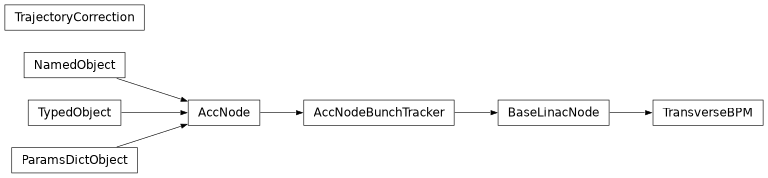

Class Inheritance Diagram

Functions

SNS_EngeFunctionFactory(quad)	It generates the Enge's Function for SNS quads.
JPARC_EngeFunctionFactory(quad)	It generates the Enge's Function for J-PARC quads.

Classes

EngeFunction(length_param, ...[, cutoff_level])	The Enge function with parameters from Berz's paper
AbstractQuadFieldSourceFunction()	It is an abstract class describing the quadrupole magnetic field as a function of the longitudinal coordinate.
SimpleQuadFieldFunc(quad)	It is an implementation of the QuadFieldSourceFunction class for a simple quad with constant field between (-L/2;+L/2).
PMQ_Trace3D_Function(length_param, rad_in, ...)	The PMQ Function is a represenatation of the field of permanent quad from Trace3D documantation (p 77): http://laacg.lanl.gov/laacg/services/traceman.pdf

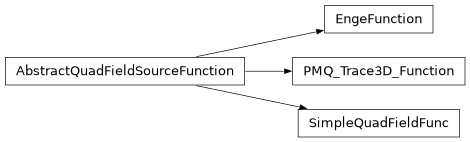

Class Inheritance Diagram

Classes

RF_AxisFieldAnalysis(splineFiled[, zeroIsCenter])	This class analyzes the RF electric field on the axis of a whole cavity.
SuperFish_3D_RF_FieldReader()	This class reads the SuperFish file with the 3D axial symmetric RF field.

Class Inheritance Diagram
