orbit.diagnostics

Functions

addTeapotDiagnosticsNode(lattice, position, ...)	It will put one Teapot diagnostics node in the lattice
addTeapotDiagnosticsNodeAsChild(lattice, ...)
addTeapotStatLatsNodeSet(lattice, filename)	It will put one Teapot statlats node at start of each node in lattice
addTeapotMomentsNodeSet(lattice, filename, order)	It will put one Teapot statlats node at start of each node in lattice
profiles(bunch, coord, histogram[, steps, ...])	Returns a profile as Grid1D object for one of the following bunch coordinates: x[m] xp[rad] y[m] yp[rad] z[m] dE[GeV]

Classes

StatLats(filename)	This class gathers delivers the statistical twiss parameters
StatLatsSetMember(file)	This class delivers the statistical twiss parameters
TeapotStatLatsNode(filename[, name])	The statlats node class for TEAPOT lattice
TeapotStatLatsNodeSetMember(file[, name])	The statlats node class for TEAPOT lattice
Moments(filename, order, nodispersion, emitnorm)	This class delivers the beam moments
MomentsSetMember(file, order, nodispersion, ...)	This class delivers the beam moments
TeapotMomentsNode(filename, order[, ...])	The moments node class for TEAPOT lattice
TeapotMomentsNodeSetMember(file, order[, ...])	The moments node class for TEAPOT lattice
TeapotTuneAnalysisNode([name])

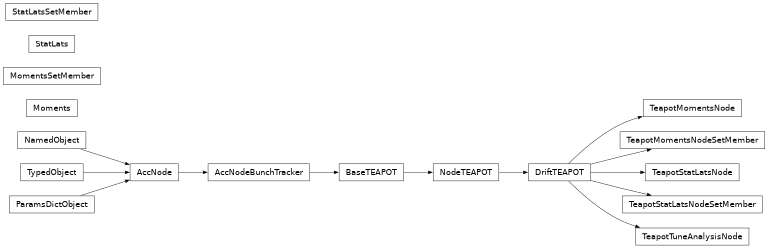

Class Inheritance Diagram
